Auto Chemistry Analyzer BK-200mini( NEW BK-200)
₱ 0.00
Product ID: BK-200mini( NEW BK-200)
Brand: Biobase -CHINA
â‘ . 37 Sample positions.
â‘¡. 28 Reagent positions.
â‘¢. 48 Reaction cuvettes.
â‘£. 200 Tests per hour.
⑤. Probe anti-collision function, liquid level detection function.
NOTE: No Exchange No Return Learn MoreÂ
Warranty: 1 year from the delivery date, covering manufacturing defects. It does not cover breakage or misuse.
Quality is our priority. Our laboratory equipment is built for precision, durability, and dependable performance, ensuring consistent, reliable support for all your scientific needs.

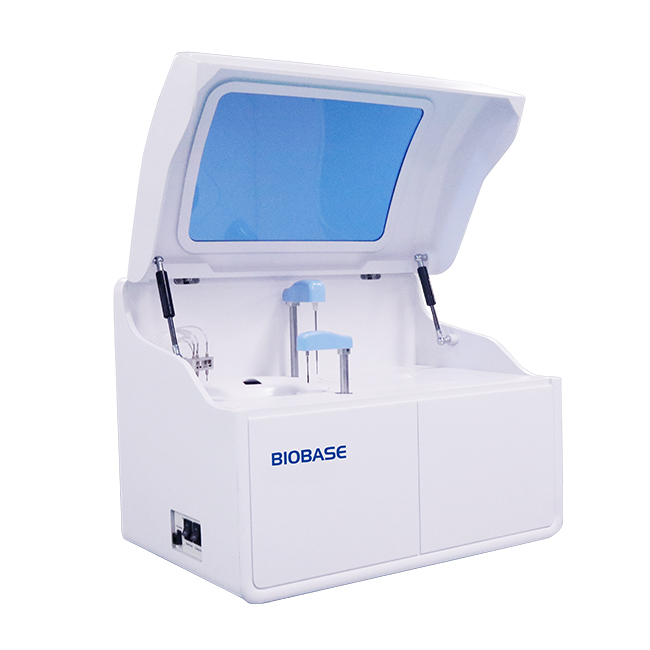

Overall appearance
One probe for reagents and sample;One mixer;Washing probe.
Reaction tray
37℃±0.1℃, real-time monitor.
Reagent Tray
Refrigerated tray with independent switch.
Mixer Probe
Sample needle
Liquid level sensor function. Anti-collision function.Reagent volume real-time detection.
Washing Probe
Independent 2-step washing system.
LAN Port AccessÂ
| Model | BK-200mini( NEW BK-200) | |
| Overall Performance |
Throughput | 200Â Tests/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic) | |
| Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent System | Sample Positions | 37 sample positions |
| Reagent Position | 28 reagent positions | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | 37+0.1℃, real-time monitoring |
| Cuvettes | 48 reusable cuvettes,optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STATÂ function | YES | |
| Optical System | Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340,405,450,510,546,578,630,700nm | |
| Absorbance | 0~3.0Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10 , 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External,multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
| Temperature | 10～30℃ | |
| Water Consumption | Deionized water:＜5L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 625*425*460mm |
| Net Weight | 36kg | |
| Package Size (W*D*H) | 721*531*855mm | |
| Gross Weight | 55kg | |
